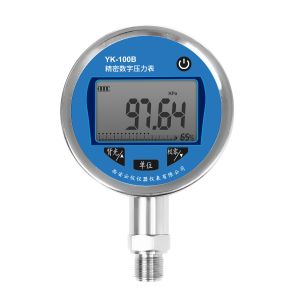

Digital Pressure Gauge Precision Pressure Gauge Air Pressure Gauge
Description Digital Pressure Gauge Precision Pressure Gauge Air Pressure Gauge
Precision Digital Pressure Gauge featuring imported sensors for
superior performance: high accuracy (up to 0.05% FS), corrosion
resistance, impact/vibration resistance, and exceptional stability.
Powered by an ultra-low power processing system (signal processor +
power management IC) and large-capacity lithium battery for
cordless operation - no external power required. Dual-display
functionality combines a 5-digit digital readout with intuitive
analog bar graph for clear visualization. Ideal for on-site
pressure measurement and calibration/verification of general
pressure gauges, precision gauges, and pressure transmitters,
effectively replacing traditional mechanical pointer gauges in
demanding environments.
Specification Digital Pressure Gauge Precision Pressure Gauge Air Pressure Gauge
| Pressure range | -0.1~0MPa 0~260MPa |
| Analog output | 4-20MA |
| Data output | RS485, RS232 |
| Power supply | Rechargeable battery |
| Process connection | M20*1.5 |
| Display | 5 digits LED |
| Over load | 1.5-3 times |
| Medium temperature | -40℃~70℃ |
| Hysteresis | 0.01% |
| Accuracy | 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |
| Isolation technology | signal isolation technique, anti electromagnetic interference
and radio frequency technology |
| Zero | zero automatically setted, don't need for calibration |
| Progress display | visual display of pressure percentage |
| Dimension | φ100mm × 34mm |
| Weight | 0.75kg |
Features Digital Pressure Gauge Precision Pressure Gauge Air Pressure Gauge
Precision Digital Pressure Gauge with Field-Optimized Intelligence
Ultra-Efficient Performance
Micro Power Consumption: Advanced power management extends operation to 600+ hours per
charge
0.05% FS High Accuracy: Laboratory-grade precision in field environments
High-Contrast LCD: 128x64 pixel sunlight-readable display with dynamic bar graph
Compact Field Operation
Palm-Sized Design: 80x120mm housing fits confined spaces
One-Touch Calibration: Automated linearity compensation & magnetic pen zeroing (2-sec
adjustment)
Direct %FS Visualization: Real-time pressure percentage display for instant diagnostics
Smart Connectivity
10-Unit Flexibility: Seamless switching between
mmH₂O/mmHg/psi/kPa/MPa/Pa/mbar/bar/inH₂O/inHg
RS485 RTU Protocol: Real-time data streaming to SCADA/DCS via Modbus
PC Monitoring Suite: Live pressure trend logging & report generation (Windows/Linux)
