Yunyi Dual Float Wireless Magnetostrictive Transmitter Interface Emulsion Layer

Ask Lasest Price
Brand Name :	YUNYI
Model Number :	YLMW400
Certification :	CE, ROHS, ISO
Price :	140-180usd
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100Sets per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Yunyi Dual Float Wireless Magnetostrictive Transmitter Interface Emulsion Layer

Wireless Magnetostrictive Level Gauge utilizes magnetostrictive waveguide technology combined with industrial IoT architecture (LoRaWAN/NB-IoT/4G). Engineered for harsh environments, this gauge uses magnetostrictive technology and industrial-grade materials for high-accuracy three-in-one measurement.

It operates via stress wave detection triggered by a magnetic float, ensuring continuous monitoring without drift. With wireless IoT options and ultra-low power consumption, it offers easy deployment and years of service in tanks, reactors, and fuel terminals.

Specification

Model	YLMW400
Medium	Compatible liquid with the material
Medium pressure	-0.05 ~ 10MPa
Medium viscosity	0.5 ~ 2.0g/cm3
Resistance	adjustable between 0～24s
Maximum load	50×(power supply voltage-9)Ω
Dead zone	upper dead zone 50mm; bottom dead zone 50mm
Power influence	Less than 0.005%/V of output range

Advantages

Offers precision within ±0.05% FS and resolution to 0.1mm, ensuring fairness in custody transfer and process accuracy.
Multi-parameter capability allows one device to measure level, interface position, and temperature, reducing equipment and installation costs significantly.
Maintenance-free wireless design features long-term battery operation (8+ years), IP68 seal, and no need for recalibration over its service life.

Core Application Areas

✓ Petrochemical Distillation Towers: Crude oil separation interface monitoring (oil/water/emulsion layer), pressure reactor liquid level control.

✓ LNG Storage and Transportation: Precise measurement of deep-cold media (-196°C) liquid levels, supporting trade transfer certification (OIML R85).

✓ Chemical Intermediate Tanks: Simultaneous level/density analysis of highly corrosive media (hydrofluoric acid, caustic soda).

✓ New Energy Materials: Clean-grade measurement for lithium-ion battery electrolyte storage tanks and high-purity solvent tanks (316L/Alloy C276 material).

✓ Large floating roof tanks: Multi-point wireless networking for tanks over 10,000 m³, eliminating measurement errors caused by temperature gradients.

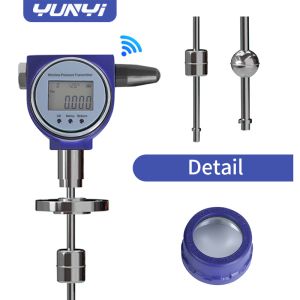

Yunyi Dual Float Wireless Magnetostrictive Transmitter product photo
