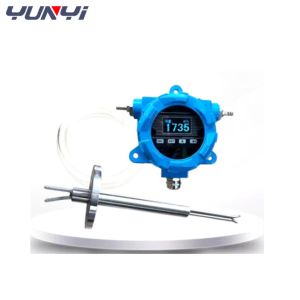

Description High temperature differential wind pressure sensor
Velocity transmitter anemometer
This wind speed transmitter can withstand high temperature of 200°C
and can adapt to dusty corrosion environment. The shell is made of
high temperature resistant and corrosion resistant material. Based
on the Pitot tube wind speed measurement principle, the measurement
requires less air and the performance is stable. The detection data
is accurately calibrated in the full range through the internal
controller, and linear compensation and temperature compensation
are all realized digitally, so the accuracy and resolution are
high. No zero drift and excellent long-term stability. High cost
performance, more convenient to use. This series of transmitters
can withstand high instantaneous pressure and need to be installed
directionally.
Detailed Images High temperature differential wind pressure sensor Velocity
transmitter anemometer
Specification High temperature differential wind pressure sensor Velocity
transmitter anemometer
Installation High temperature differential wind pressure sensor Velocity
transmitter anemometer
1 The upper cover is designed to be self-locking, that is, it will
not fall off without screw fixing. When installing the upper cover,
you can cover half of it first, which is convenient for operation
and reduces the risk of aerial operation.
2 The length of the lead wire and its loss must be considered in
engineering applications. It is recommended to use the value
| Cable model(GB) | Length | Power |
| 0.5mm BVVR cable | 60m | AC24V |
| 1.0mm BVVR cable | 150m | AC24V |
| 1.5mm BVVR cable | 300m | AC24V |
Application High temperature differential wind pressure sensor Velocity
transmitter anemometer
Filter pressure drop monitoring
Variable air volume system
Clean operating room
Biological clean laboratory
Mining industry,
small wind speed measurement field
HVAC Pipe
air flow
Biological safety cabinet
Isolation ward
Factory flue gas treatment
Dimension High temperature differential wind pressure sensor Velocity
transmitter anemometer
