Stainless Steel High Pressure Piston Solenoid Valve For Gas Water Oil

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	CP32
Price :	US$8.9 - US$19.8
Payment Terms :	D/A, D/P, T/T, Western Union
Supply Ability :	1000 Piece/Pieces per week

Add to Cart

Product Details
Company Profile

Stainless Steel High Pressure Piston Solenoid Valve For Gas Water Oil

Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve

Description Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve

Stainless steel solenoid valves are actuators for industrial process automation control systems. It can be automatically opened or closed after receiving the electric control signal to realize the on-off or flow adjustment control of the liquid medium in the pipeline.

Specification Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve

Use medium:	various gas liquids such as steam, hot water, high temperature oil, air, etc
Fluid temperature:	PTFE: -20°C ~ 200°C VITON : -10°C ~120°C
Working pressure:	0.05 ~ 1.60MPa
Valve body material:	brass or stainless steel sus304 (sus316 material is available), it is recommended to use stainless steel body products, which can improve the unreliability of the solenoid valve due to thermal expansion
Connection size:	G or NPT thread, 3/8”, 1/2”, 3/4”, 1” 1 1/4”, 1 1/2”, 2”
Diameter (mm):	DN 12, 15, 20, 25, 32, 40, 50 25F, 32F, 40F, 50F flange connection
Optional voltage:	DC: 12V, 24V AC: 220/230V 110/120V 24V 50/60HZ
Coil type:	S21H, 22VA(AC), 14W(DC), IP65, 100%ED

Material of main parts Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve

Valve body: brass or stainless steel 304 Seal: PTFE or Viton
Piston: stainless steel 304 Piston ring: Graphite PTFE
Movable and fixed iron core: stainless steel 1J117 Magnetic isolation tube base and tube: stainless steel 304 Iron core spring and other accessories: stainless steel 304

Parameters of Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve

CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa thread connection

Model No.	CP3212X X X	CP3215XX X	CP3220XX X	CP3225XX X	CP3232XX X	CP3340XX X	CP3250XX X
Length(A)	75	75	83	100	130	130	155
Width(B)	48	48	60	72	96	96	122
height(C)	118	118	127	140	140	140	149
Connection Distance(D)	13.5	13.5	16.5	25	28	28	34

CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa Flange connection

Model No.	CP3225FXXX	CP3232FXXX	CP3240FXXX	CP3250FXXX
Length (A)	130	160	160	190
Width (B)	115	140	150	165
Height(C)	175	187	187	200
Connecting distance(D)	57.5	69	75	82.5

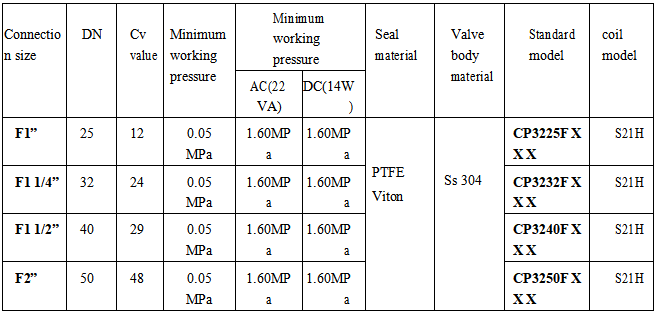

Selection Guide Factory Supply Stainless Steel High Pressure Gas Water Oil Piston Solenoid Valve
